Draft and Liquor System Controls

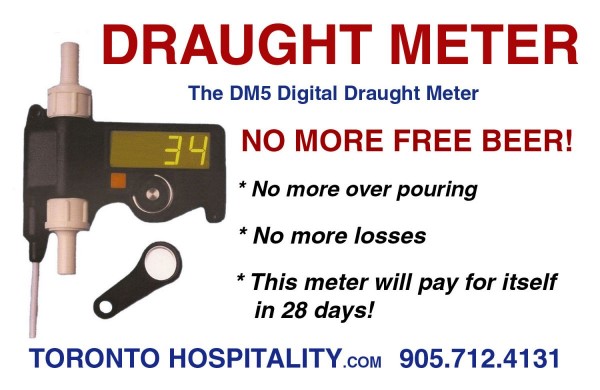

DM5 Specifications

This meter is installed inside the Beer Cooler, one meter per line, it can be installed before or after the fob, the fob is not necessary. The flow of direction is in the bottom and out the top.

The fittings come standard 3/8 “ This meter is powered by a 5v d.c. power supply up to 2 meters can run off of one power supply. Clean power is recommended.

The DM5 is a very simple device that can be calibrated to count ounces or pints.

To Program the pour size

1. Press and hold red switch on meter.
2. While holding red switch down, touch metal part of key to metal contact on meter
3. Release switch and key, wait 2 seconds
4. Press and hold red switch to increment the programming number
5. When desired number is achieved touch metal part of key to metal contact on the meter
6. Meter will say DONE

To program an additional key

1. Below the display is a tiny hole inside is a switch, insert pin to push switch
2. Touch metal part of new key to metal contact on meter.
3. Meter will now say DONE key is programmed.

Loss Revenue Spreadsheet
Hold Your Bartender Accountable

Liquor Price	If you lose a drink per day	Yearly Losses
$4.50	1 Drink	$1,638.00
$4.50	2 Drinks	$3,285.00
$4.50	3 Drinks	$4,927.00
$4.50	4 Drinks	$6,570.00
------------------------------------------------------------------------
Draught Price	If you lose a drink per day	Yearly Losses
$6.50	1 Pint	$2,372.00
$6.50	2 Pints	$4,745.00
$6.50	3 Pints	$7,117.00
$6.50	4 Pints	$9,490.00

------------------------------------------------------------------------
